MCI Series Safety Light Curtain

...

product

Features:

◆ Convenient to mount and wiring, complete range of models;

◆ Perfect self-checking function;

◆ Good immunity to the surrounding lights and electromagnetic;

◆ Good performance of anti-vibration, water and dust;

◆ LED intuitive indication of the sensor’s status;

◆ Optical synchronization applied to save mounting time.

Parameters:

Protection range	0~8000mm
Protection height	Light axis pitch×(beams-1)
Light axis pitch	10mm, 20mm, 40mm, 80mm
Detection capability	19mm, 29mm, 49mm, 89mm
Power supply	DC24V
Working current	<200mA
Loading current	<200mA
Response time	<20ms(<80?beams)
DC	>99%
MTTF_D	120a
Safety level	PL c (EN ISO 13849)
Sealing level	IP65
Operation temp.	–10°C ~ +55°C
Humidity	20°C, RH ≤85%
Immunity to light	10000Lux (Angle of incidence ≥5°)
Anti-vibration	Frequency:10~55Hz, Amplitude:0.35mm
Impact resistance	10g, 16ms, 000times at X,Y,Z axis

Wiring:

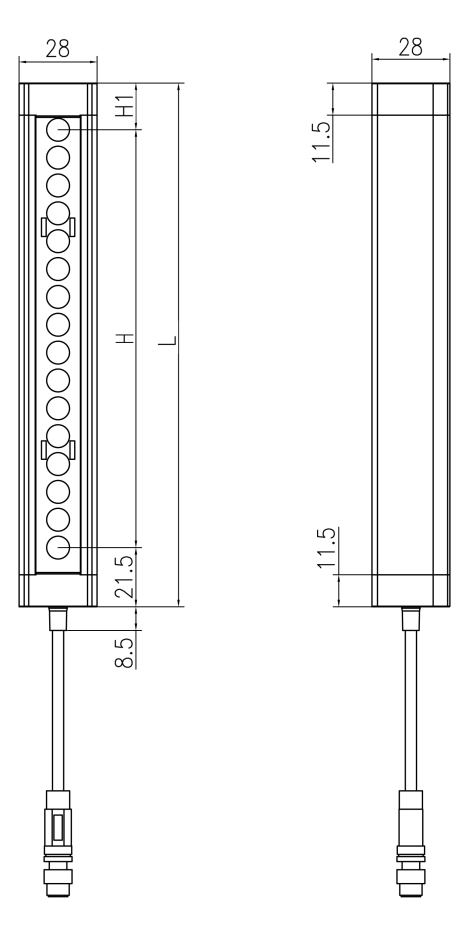

Size:

H:protection height;?H1: the distance from upper 1st beam center to the upper end cover:

16.5mm(light axis pitch: 10mm), 26.5mm(light axis pitch: 20mm), 46.5mm(light axis pitch: 40mm);

L:sensor housing height;

Models:

light axis pitch 10mm				light axis pitch 20mm				light axis pitch 40mm
specification	beam	H	L	specification	beam	H	L	specification	beam	H	L
MCⅠ1610	16	150	188	MCⅠ 0820	8	140	188	MCⅠ 0440	4	120	188
MCⅠ2010	20	190	228	MCⅠ 1220	12	220	268	MCⅠ 0640	6	200	268
MCⅠ2410	24	230	268	MCⅠ 1620	16	300	348	MCⅠ 0840	8	280	348
MCⅠ2810	28	270	308	MCⅠ 2020	20	380	428	MCⅠ 1040	10	360	428
MCⅠ3210	32	310	348	MCⅠ 2420	24	460	508	MCⅠ 1240	12	440	508
MCⅠ3610	36	350	388	MCⅠ 2820	28	540	588	MCⅠ 1440	14	520	588
MCⅠ4010	40	390	428	MCⅠ 3220	32	620	668	MCⅠ 1640	16	600	668
MCⅠ4410	44	430	468	MCⅠ 3620	36	700	748	MCⅠ 1840	18	680	748
MCⅠ4810	48	470	508	MCⅠ 4020	40	780	828	MCⅠ 2040	20	760	828
MCⅠ5210	52	510	548	MCⅠ 4420	44	860	908	MCⅠ 2240	22	840	908
MCⅠ5610	56	550	588	MCⅠ 4820	48	940	988	MCⅠ 2440	24	920	988
MCⅠ6010	60	590	628	MCⅠ 5220	52	1020	1068	MCⅠ 2640	26	1000	1068
MCⅠ6410	64	630	668	MCⅠ 5620	56	1100	1148	MCⅠ 2840	28	1080	1148
MCⅠ6810	68	670	708	MCⅠ 6020	60	1180	1228	MCⅠ 3040	30	1160	1228
MCⅠ7210	72	710	748	MCⅠ 6420	64	1260	1308	MCⅠ 3240	32	1240	1308
MCⅠ7610	76	750	788	MCⅠ 6820	68	1340	1388	MCⅠ 3440	34	1320	1388
MCⅠ8010	80	790	828	MCⅠ 7220	72	1420	1468	MCⅠ 3640	36	1400	1468
MCⅠ8410	84	830	868	MCⅠ 7620	76	1500	1548	MCⅠ 3840	38	1480	1548
MCⅠ8810	88	870	908	MCⅠ 8020	80	1580	1628	MCⅠ 4040	40	1560	1628
MCⅠ9210	92	910	948	MCⅠ 8420	84	1660	1708	MCⅠ 4240	42	1640	1708
MCⅠ9610	96	950	988	MCⅠ 8820	88	1740	1788	MCⅠ 4440	44	1720	1788
MCⅠ10010	100	990	1028	MCⅠ 9220	92	1820	1868	MCⅠ 4640	46	1800	1868
MCⅠ10410	104	1030	1068	MCⅠ 9620	96	1900	1948	MCⅠ 4840	48	1880	1948
MCⅠ10810	108	1070	1108	?	?	?	?	light axis pitch 80mm
MCⅠ11210	112	1110	1148	?	?	?	?	MCⅠ 0280	2	80	188
MCⅠ11610	116	1150	1188	?	?	?	?	MCⅠ 0380	3	160	268
MCⅠ12010	120	1190	1228	?	?	?	?	MCⅠ 0480	4	240	348
MCⅠ12410	124	1230	1268	?	?	?	?	MCⅠ 0580	5	320	428
MCⅠ12810	128	1270	1308	?	?	?	?	MCⅠ 0680	6	400	508
MCⅠ13210	132	1310	1348	?	?	?	?	MCⅠ 0780	7	480	588
MCⅠ13610	136	1350	1388	?	?	?	?	MCⅠ 0880	8	560	668
MCⅠ14010	140	1390	1428	?	?	?	?	MCⅠ 0980	9	640	748
MCⅠ14410	144	1430	1468	?	?	?	?	MCⅠ 1080	10	720	828
MCⅠ14810	148	1470	1508	?	?	?	?	MCⅠ 1180	11	800	908
MCⅠ15210	152	1510	1548	?	?	?	?	MCⅠ 1280	12	880	988
MCⅠ15610	156	1550	1588	?	?	?	?	MCⅠ 1380	13	960	1068
